How to Select a Sanitary Centrifugal Pump for Hygienic Applications

Fristam FPR Sanitary Centrifugal Pump

Selecting a sanitary centrifugal pump for a hygienic process is often approached as a straightforward exercise in matching flow rate and pressure requirements. While these parameters are essential, they represent only part of the decision. In practice, pump performance is shaped just as much by the characteristics of the product being handled, the design of the system, and the operational expectations placed on the equipment. In food, beverage, dairy, and pharmaceutical applications—where consistency, cleanability, and uptime are critical—taking a broader view of pump selection can lead to more reliable and efficient outcomes over the long term.

Centrifugal pumps are widely used in hygienic processing because of their ability to deliver smooth, continuous flow with relatively simple mechanical design. They perform particularly well when handling low-viscosity fluids such as water, cleaning solutions, and many finished liquid products. In these conditions, they can provide high flow rates with stable operation and relatively low maintenance requirements. However, their reliance on velocity to generate flow also makes them sensitive to changes in system conditions. As resistance in the system increases, the pump’s ability to deliver flow decreases, and efficiency can decline if the pump is forced to operate outside of its intended range.

For this reason, effective pump selection begins not with the pump curve alone, but with a clear understanding of the application. The properties of the product being handled play a central role. Fluids that behave like water will generally align well with centrifugal pump performance, but as viscosity increases—even moderately—the hydraulic efficiency of the pump begins to drop. In some cases, this can result in higher energy consumption, reduced flow, and increased mechanical stress on components. Similarly, products that are sensitive to shear or that contain entrained air can introduce additional challenges that are not always apparent during initial sizing calculations.

Another important consideration is how the system will actually operate over time. Many hygienic processes are not static. Flow rates may vary, temperatures can change, and product characteristics may shift between batches or during different stages of production. A pump that performs well at a single design point may struggle under these changing conditions if it has not been selected with sufficient flexibility in mind. This is where the concept of the Best Efficiency Point, or BEP, becomes especially important. Every centrifugal pump has a range where it operates most efficiently and with the least amount of mechanical stress. Consistently operating too far to the left or right of this point can lead to vibration, seal wear, and reduced equipment life. In hygienic applications, where unplanned downtime can disrupt production schedules and impact product quality, maintaining operation near this optimal range is a key objective.

System design also plays a significant role in how a centrifugal pump performs. The pump itself cannot overcome poor piping decisions or restrictive layouts. Suction conditions, in particular, deserve careful attention. Long suction runs, undersized piping, or excessive fittings can reduce the pressure available at the pump inlet, increasing the risk of cavitation and unstable operation. On the discharge side, excessive throttling used to control flow can push the pump away from its efficient operating range. These system-level influences are often the difference between a pump that performs reliably and one that requires frequent adjustment or maintenance.

In hygienic environments, pump selection must also account for how the equipment will be cleaned and maintained. Clean-in-place systems place specific demands on pump design, including the ability to fully drain, avoid product entrapment, and withstand repeated exposure to cleaning solutions and temperature cycles. Internal geometry, surface finish, and seal configuration all contribute to how effectively a pump can be cleaned. Designs that support thorough cleaning without disassembly can help reduce downtime and support more consistent sanitation practices, which is especially important in regulated industries such as dairy and pharmaceutical processing.

Seal design is another area that can significantly influence both performance and serviceability. In many cases, the ease with which a seal can be accessed, inspected, and replaced has a direct impact on maintenance efficiency. Pumps that allow for simplified seal service without extensive disassembly can reduce labor requirements and help return equipment to operation more quickly. Over time, these considerations can have a meaningful effect on total cost of ownership, even if they are not immediately apparent during the initial selection process.

Pump Seal

While standard sanitary centrifugal pumps are well suited for many applications, it is also important to recognize where variations of centrifugal technology may be required to address specific process challenges. Not all hygienic systems behave the same, and certain conditions can push beyond the practical limits of a traditional centrifugal design.

For example, applications involving CIP return, tank unloading, or situations where the pump must handle air or intermittent flow often benefit from a self-priming centrifugal design. Liquid ring style pumps are commonly used in these cases because they are capable of evacuating air and maintaining flow even when the suction line is not fully flooded. In hygienic processing, this type of design is often used to improve reliability in return systems where foam, air, or inconsistent flow conditions are present.

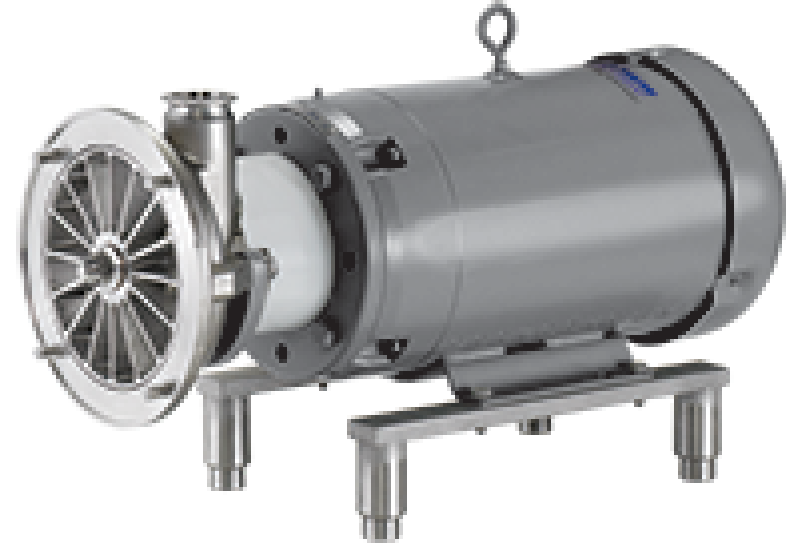

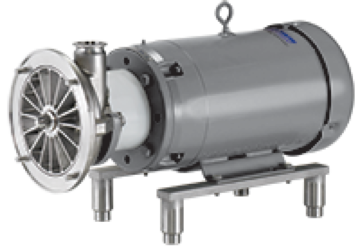

Fristam FZX Liquid Ring Pump

Similarly, processes that involve entrained air or foam—such as fermentation, mixing, or certain cleaning operations—can create unstable flow conditions for standard centrifugal pumps. In these environments, selecting a pump designed to better tolerate air handling can help maintain consistent performance and reduce the risk of flow disruption or loss of prime.

At the other end of the performance spectrum, some hygienic applications require significantly higher pressures than a standard centrifugal pump can efficiently provide. Membrane filtration systems, including reverse osmosis and ultrafiltration, are common examples. These processes demand consistent, high-pressure flow without pulsation, often over extended operating periods. Multi-stage centrifugal pumps are typically used in these situations, as they are designed to generate higher pressures by using multiple impellers in series while maintaining smooth, continuous flow characteristics.

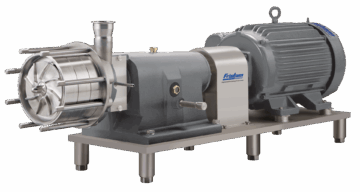

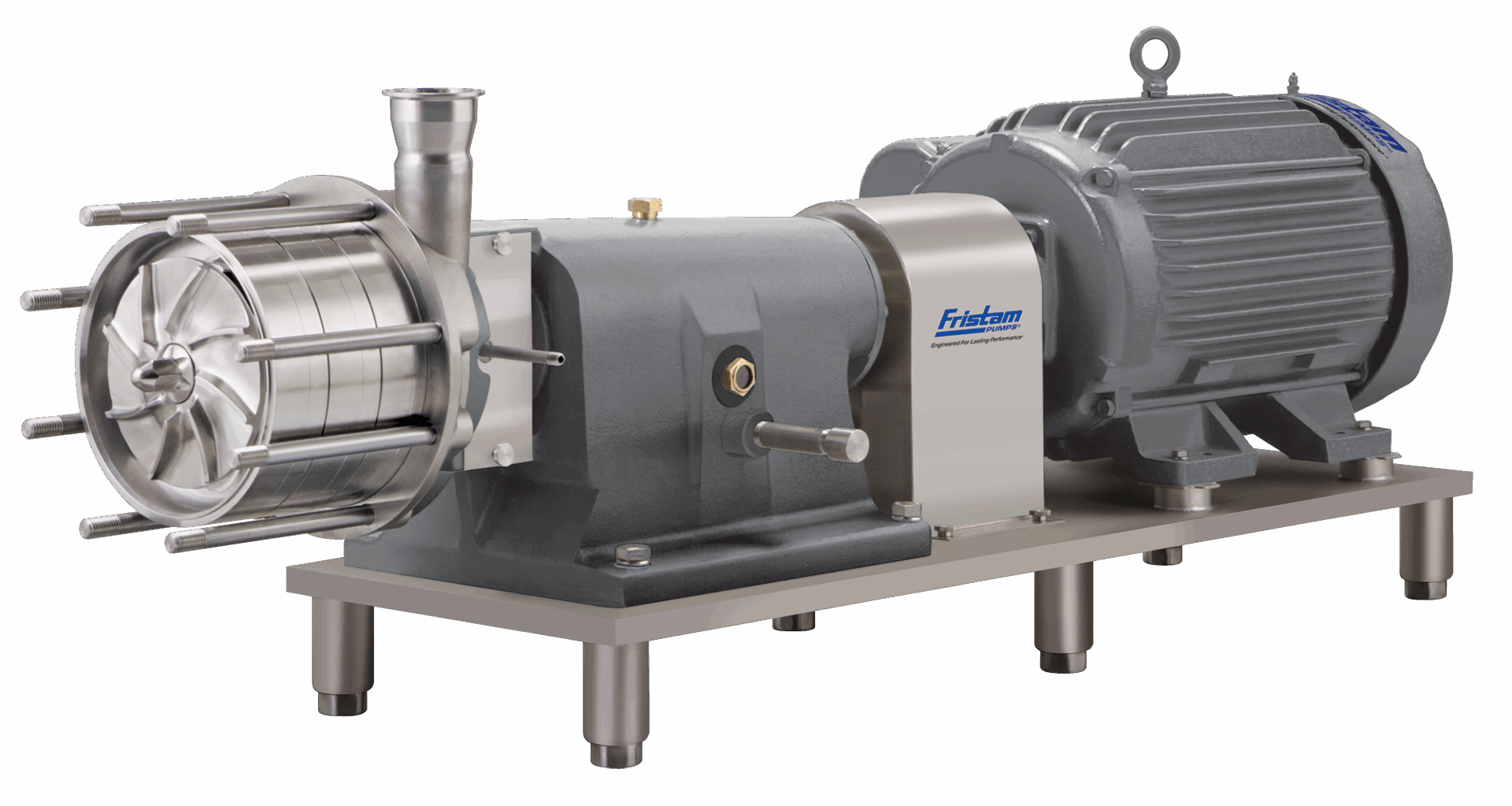

Fristam FM Series Multi-Stage Pump

Recognizing when these alternative centrifugal designs are more appropriate is an important part of the selection process. Rather than trying to force a standard pump to operate outside of its ideal range, matching the pump design to the application can lead to more stable operation, improved efficiency, and longer equipment life.

One of the more common challenges in centrifugal pump selection is the tendency to oversize. This is often done as a precaution, with the assumption that additional capacity provides a margin of safety. In reality, oversizing frequently leads to throttled operation, where flow is artificially restricted to meet process requirements. This not only wastes energy but also forces the pump to operate away from its Best Efficiency Point, increasing wear on internal components. A more effective approach is to size the pump as closely as possible to actual operating conditions, while accounting for reasonable variability in the process.

Ultimately, selecting a sanitary centrifugal pump is not about choosing a standalone piece of equipment, but about understanding how that equipment will function within a broader process system. The interaction between the pump, the piping, the product, and the operating conditions determines the overall performance. Taking the time to evaluate these relationships during the selection phase can help avoid many of the issues that lead to inefficiency, maintenance challenges, or inconsistent operation.

Sanitary centrifugal pumps remain a highly effective solution for many hygienic applications, particularly those involving low-viscosity fluids and steady flow requirements. When selected with a full understanding of the application and system dynamics, they can provide reliable, efficient performance over long operating periods. For processors looking to optimize their systems, a thoughtful and application-driven approach to pump selection is one of the most valuable steps they can take.

For additional guidance on selecting the right sanitary centrifugal pump for your application—including applications involving self-priming requirements, air handling, or high-pressure systems—consider connecting with your local authorized Fristam distributor or a Fristam application expert to review your system requirements in more detail.
