FKL COP

Positive Displacement Pump

COP Version, 500 PSI Circumferential Piston

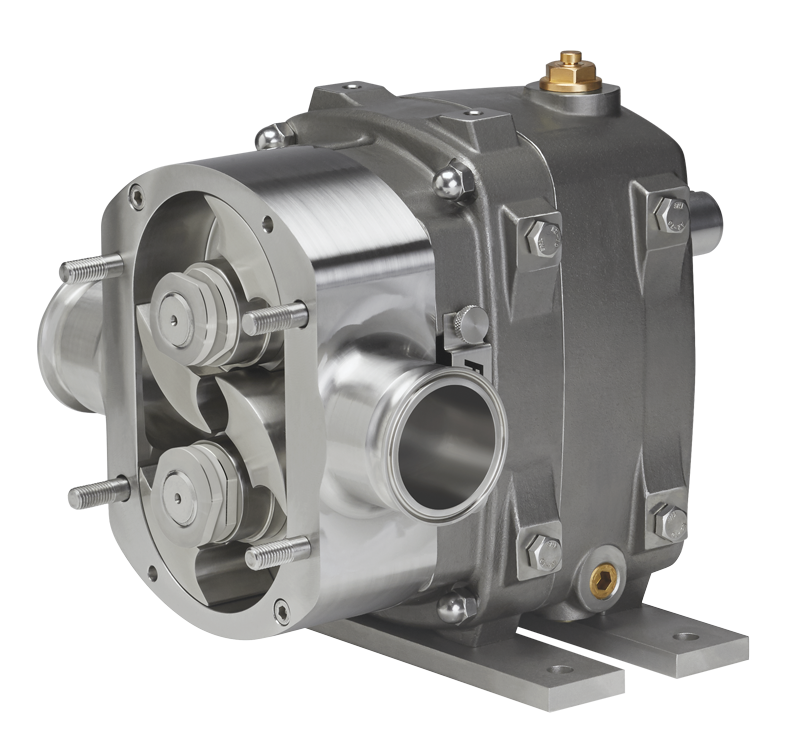

Fristam FKL COP: Heavy Duty PD Pump for Daily Teardown

Fristam is known for making pumps that do not need to be taken apart for cleaning. They are designed for CIP. But our customers who insist upon strip cleaning daily or between batches asked us to make a COP pump and moreover, one that was easy to take apart, clean and reassemble while still being tough as nails. (watch the story below)

Stop rebuilding, replacing, and spending your valuable time on other PD pumps. Fristam’s FKL COP pump simply runs better and lasts longer.

We’ve taken the toughest, most durable sanitary positive displacement pump and optimized it for those who need to strip clean their pumps daily or between batches.

  • Robust design and construction allow for elevated pressure and longer life
  • Tight internal clearances provide high efficiency
  • O-ring seals and fewer components make assembly and disassembly simple

Engineered for lasting performance, its large diameter shaft is stronger than others. The FKL’s shaft and unique balanced rotor design reduce rotor-to-housing contact that can prematurely wear your pump. In fact, the shaft is guaranteed for life never to break.

FKL COP Model Specifications

Max Flow Rate

15.5 gpm (58.7 lpm)

Max Speed

1000 rpm

Max Discharge Pressure

200 psi (14 bar)

Fittings (Housing / Seal Flush Thread)

1.5" clamp / 1/16" NPT

Weight

75 lbs (34 kg)

Options

O-Ring Seal

Max Flow Rate

25.6 gpm (96.9 lpm)

Max Speed

800 rpm

Max Discharge Pressure

200 psi (14 bar)

Fittings (Housing / Seal Flush Thread)

1.5" clamp / 1/16" NPT

Weight

75 lbs (34 kg)

Options

O-Ring Seal

Max Flow Rate

33.6 gpm (127.2 lpm)

Max Speed

600 rpm

Max Discharge Pressure

300 psi (21 bar)

Fittings (Housing / Seal Flush Thread)

1.5" clamp / 1/16" NPT

Weight

104 lbs (47 kg)

Options

O-Ring Seal

Max Flow Rate

57.6 gpm (218 lpm)

Max Speed

600 rpm

Max Discharge Pressure

500 psi (35 bar)

Fittings (Housing / Seal Flush Thread)

2.5" clamp / 1/16" NPT

Weight

135 lbs (61 kg)

Options

Rectangular Inlet / O-Ring Seal

Max Flow Rate

93.6 gpm (354 lpm)

Max Speed

600 rpm

Max Discharge Pressure

500 psi (35 bar)

Fittings (Housing / Seal Flush Thread)

2.5" clamp / 1/16" NPT

Weight

360 lbs (163 kg)

Options

Rectangular Inlet / O-Ring Seal

Max Flow Rate

155 gpm (588 lpm)

Max Speed

600 rpm

Max Discharge Pressure

500 psi (35 bar)

Fittings (Housing / Seal Flush Thread)

3" clamp / 1/16" NPT

Weight

451 lbs (205 kg)

Options

Rectangular Inlet / O-Ring Seal

Max Flow Rate

270 gpm (1,022 lpm)

Max Speed

600 rpm

Max Discharge Pressure

500 psi (35 bar)

Fittings (Housing / Seal Flush Thread)

4" clamp / 1/16" NPT

Weight

680 lbs (308 kg)

Options

Rectangular Inlet / O-Ring Seal

Max Flow Rate

324 gpm (1,226 lpm)

Max Speed

600 rpm

Max Discharge Pressure

500 psi (35 bar)

Fittings (Housing / Seal Flush Thread)

4" clamp / 1/16" NPT

Weight

744 lbs (338 kg)

Options

Rectangular Inlet / O-Ring Seal

Max Flow Rate

444 gpm (1,681 lpm)

Max Speed

600 rpm

Max Discharge Pressure

500 psi (21 bar)

Fittings (Housing / Seal Flush Thread)

6" flange / 1/16" NPT

Weight

950 lbs (431 kg)

Options

Rectangular Inlet

Max Flow Rate

728 gpm (2,756 lpm)

Max Speed

400 rpm

Max Discharge Pressure

300 psi (21 bar)

Fittings (Housing / Seal Flush Thread)

6" flange / 1/8" NPT

Weight

1,580 lbs (717 kg)

Model Sizes & Graphs
