Net Positive Suction Head (NPSH) Explained: How to Protect Hygienic Pump Performance

In pump system design, few concepts are as important—and as frequently misunderstood—as Net Positive Suction Head (NPSH). While often treated as a specification detail buried in pump curves, NPSH plays a major role in determining whether a pump will operate reliably or encounter performance problems such as cavitation, noise, vibration, or premature wear. For processors handling valuable products, understanding NPSH can help prevent operational disruptions and support more stable, efficient pump performance.

Net Positive Suction Head refers to the amount of pressure available at the pump inlet to keep the fluid in a liquid state as it enters the pump. This available pressure, commonly called NPSHa (Net Positive Suction Head Available), must exceed the amount of pressure the pump requires to operate properly, known as NPSHr (Net Positive Suction Head Required). When available suction pressure falls too close to—or below—the pump’s required NPSH, vapor bubbles can form and collapse inside the pump. This phenomenon, known as cavitation, can reduce performance and contribute to component damage over time.

NPSHa > NPSHr

A common misconception is that NPSH is only a concern in high-temperature or extreme operating conditions. In reality, NPSH limitations can arise in many hygienic processing applications, including viscous product transfer, tank unloading, long suction runs, or systems handling elevated temperatures. Even relatively small design decisions—such as undersized suction piping, restrictive fittings, or excessive lift—can reduce available suction head and create operating challenges.

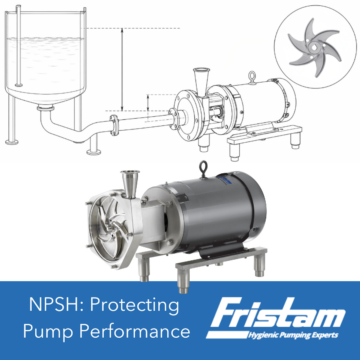

Another common misconception is that NPSHa is determined solely by the height of liquid above the pump inlet. In reality, NPSH is based on absolute pressure, not gauge pressure. The reference point begins at a perfect vacuum (0 feet absolute). At sea level, an open tank provides approximately 34 feet of absolute pressure from the atmosphere alone. At higher elevations—such as Denver (around 5,300 feet)—this drops to roughly 28 feet.

From this baseline, NPSHa is calculated by adding the static liquid height above the pump, then subtracting friction losses in the suction piping and the fluid’s vapor pressure. The result is the true pressure available at the pump inlet to keep the fluid in a stable liquid state.

Temperature is one factor that can significantly affect NPSH. As fluid temperature rises, vapor pressure increases, which reduces the margin between suction pressure and vaporization. Product viscosity can also influence suction conditions, particularly when thicker fluids create additional friction losses in the inlet line. Entrained air, common in certain food, dairy, or personal care processes, can further complicate suction stability and contribute to inconsistent performance. Entrained air is governed by different physics than cavitation, but it can disrupt product flow just as much—if not more—in certain applications.

Many NPSH-related problems are not immediately recognized as suction issues. Operators may observe noise, reduced flow, erratic performance, or premature seal and component wear without identifying inadequate suction conditions as the root cause. This is one reason NPSH deserves consideration during system design—not simply after problems occur.

Improving NPSHa often begins with evaluating the system, not just the pump. Shortening suction lines, increasing pipe diameters, reducing restrictions, improving tank geometry, or lowering fluid temperatures can all help improve suction conditions. In some cases, however, the better solution may involve reevaluating pump selection to ensure the equipment is well matched to the application.

Understanding the relationship between NPSHa and NPSHr helps move pump selection beyond flow and pressure alone. It supports a more complete view of system performance and can help reduce risk in demanding hygienic applications. For processors seeking reliable performance, NPSH is not simply a technical formula on a curve—it is a practical design consideration that can influence long-term uptime, product quality, and operating efficiency.

If you are evaluating a challenging application or experiencing inconsistent pump performance, consulting a pump application specialist can help identify whether suction conditions may be contributing to the issue.
