Shaft Deflection: A Hidden Cause of Pump Wear and Downtime

Shaft deflection is a common but often overlooked issue in positive displacement pumps used in hygienic food, beverage, and pharmaceutical processing applications. As processors push for higher pressures, tighter tolerances, and increased efficiency, insufficient shaft rigidity can lead to internal wear, seal damage, and reduced pump reliability.

Understanding what causes shaft deflection—and how proper pump design minimizes it—can help processors protect their equipment, reduce downtime, and extend service life.

What Is Shaft Deflection?

Shaft deflection occurs when operating loads cause a pump shaft to bend or flex beyond its intended tolerance. In hygienic positive displacement pumps, this typically results from:

• High discharge pressures
• Pumping viscous or dense products
• Tight internal clearances
• Rapid pressure changes during operation or CIP cycles

Even minimal shaft movement can disrupt internal alignment and create long-term reliability issues.

Why Shaft Deflection Is a Problem in Hygienic Applications

When a shaft deflects, internal components are no longer positioned as designed. This can lead to:

• Loss of precise internal clearances
• Increased wear on rotors and casings
• Premature seal failure
• Reduced volumetric efficiency
• Higher maintenance costs and unplanned downtime

In hygienic processing environments, shaft deflection can also impact cleanability, increasing the risk of product buildup or incomplete CIP.

How Pump Design Helps Prevent Shaft Deflection

Pump design plays a critical role in managing shaft deflection. Not all positive displacement pumps are engineered to handle high-load hygienic service equally.

Design features that help minimize deflection include:

• Thicker, more rigid stainless steel shafts that resist bending
• Balanced rotor designs that evenly distribute hydraulic and mechanical forces
• Robust bearing support to maintain shaft alignment
• Precision machining to maintain tight clearances without component contact
• Shortest distance between rotor and front bearing

These design elements allow the pump to maintain consistent performance under demanding operating conditions.

Built for High-Pressure, Hygienic Performance

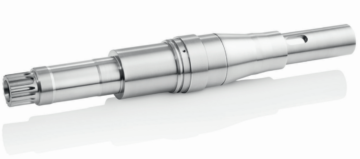

Fristam Pumps incorporates these design principles into its positive displacement pump designs. By utilizing stainless steel shafts that are up to 25 percent thicker than many competitive designs and pairing them with balanced rotors, Fristam pumps are engineered to maintain tight internal clearances even under high-pressure operation.

This robust construction helps reduce internal wear, protect seals, and deliver reliable, long-term performance in demanding hygienic applications.

Why Shaft Deflection Matters to Your Process

Minimizing shaft deflection is not just about protecting the pump—it helps protect the entire process. Pumps that maintain alignment under load deliver:

• Consistent flow and pressure control
• Longer component and seal life
• Reduced maintenance interruptions
• Predictable, repeatable production performance

For processors operating in high-pressure or viscous applications, these benefits translate directly into improved uptime and lower total cost of ownership.

Final Thoughts

Shaft deflection should never be an afterthought when selecting or evaluating a positive displacement pump. Understanding how design features such as shaft thickness, rotor balance, and bearing support influence performance can help ensure reliable operation over the life of the equipment.
When reliability matters, pump design makes the difference.

Contact our application experts today to learn more about how our robust pump technologies can benefit your challenging application.
