Single vs. Double Mechanical Seals in Hygienic Pumps: Key Differences, Applications, and Why OEM Matters

Mechanical seals play a critical role in hygienic pump performance. They prevent product leakage, protect bearings and motors, and help maintain sanitary integrity across food, beverage, pharmaceutical, and personal care processes.
Yet one of the most common questions end users face is:

Should I use a single mechanical seal or a double mechanical seal?

The answer depends on your process conditions, product characteristics, hygiene requirements, and risk tolerance. Understanding the differences can help avoid premature failures, contamination events, and unnecessary maintenance costs.

What Is a Mechanical Seal?

A mechanical seal creates a controlled barrier between the rotating pump shaft and the stationary pump housing. Its job is to:

• Keep product inside the pump
• Keep contaminants out
• Protect internal components
• Maintain hygienic integrity

In sanitary applications, mechanical seals must also withstand frequent CIP/SIP cycles, aggressive cleaning chemicals, and temperature swings — all while maintaining reliable sealing performance.

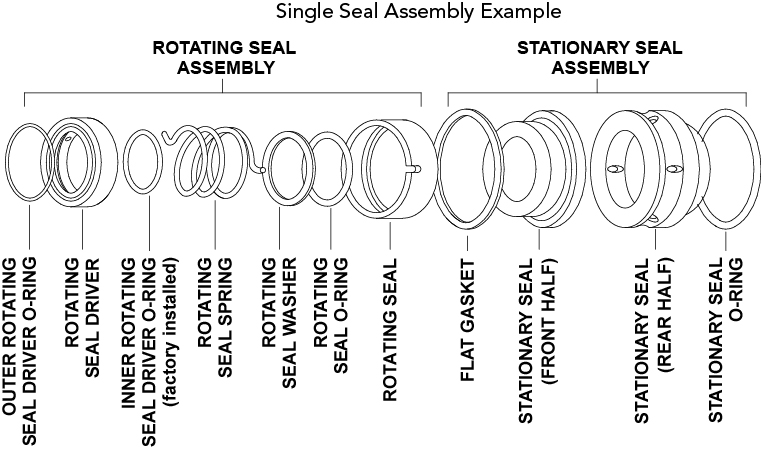

Single Mechanical Seals: Simple, Effective, and Widely Used

What It Is:
A single mechanical seal consists of one set of sealing faces. One face rotates with the shaft while the other remains stationary. Springs or elastomers maintain face contact.
Common Applications:

• Water-like or low-viscosity fluids
• Clean or non-abrasive products
• Standard food and beverage transfer
• CIP return loops
• Non-hazardous applications

Pros:

• Lower initial cost
• Simple design and easier installation
• Fewer components to maintain
• Ideal for clean, low-pressure processes

Cons:

• Limited protection if the seal fails
• Product directly contacts seal faces
• Less tolerant of dry running
• Not suitable for hazardous or crystallizing fluids

If a single seal fails, product leakage is immediate — often leading to downtime and cleanup.

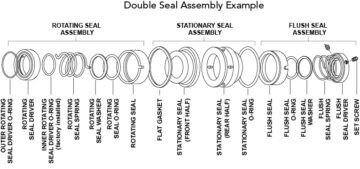

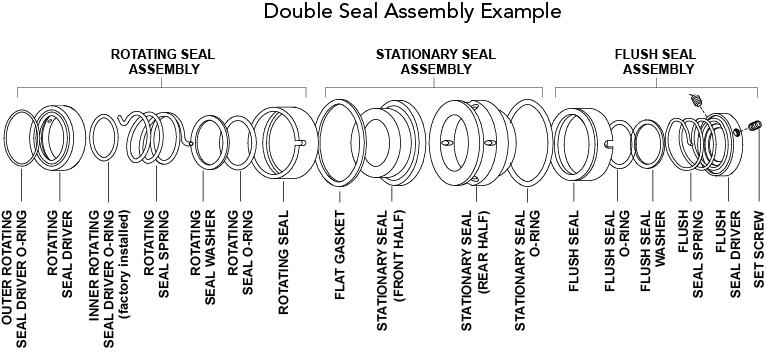

Double Mechanical Seals: Maximum Protection for Demanding Processes

What It Is:

A double mechanical seal uses two sets of sealing faces arranged in series, with a barrier or buffer fluid circulating between them. This fluid lubricates the faces, removes heat, and prevents product from reaching the atmosphere.
Common Applications:

• Shear-sensitive or high-value products
• Sticky, crystallizing, or abrasive fluids
• Hazardous or sterile media
• Pharmaceutical or biotech solutions
• Concentrates, syrups, or slurries

Pros:

• Excellent leakage protection
• Increased seal life in harsh conditions
• Reduced contamination risk
• Improved heat dissipation
• Allows safe handling of hazardous fluids

Cons:

• Higher upfront cost
• Requires barrier fluid system
• More components to maintain
• Slightly higher installation complexity

When Should You Use Each?

Choose a Single Mechanical Seal When:

• Product is clean and non-abrasive
• Operating pressures and temperatures are moderate
• Leakage risk is acceptable
• Cost sensitivity is high

Choose a Double Mechanical Seal When:

• Product is sticky, abrasive, or crystallizing
• Dry running may occur
• Fluid is hazardous or high-value
• Hygiene standards are extremely strict
• Redundancy and added protection are required

Why Genuine OEM Seals Matter

OEM mechanical seals are engineered specifically for your pump’s:

• Shaft tolerances
• Face loading requirements
• Materials compatibility
• Thermal expansion characteristics
• Hygienic geometry

Non-OEM seals may appear interchangeable, but small dimensional differences can lead to:

• Improper alignment
• Increased wear
• Reduced seal life
• Higher vibration
• Unexpected leakage
• Damage to shafts or seal chambers

OEM seals are tested as part of the complete pump system, helping ensure optimal performance, longer service intervals, and hygienic compliance.

Summary

Single mechanical seals offer a cost-effective solution for clean, low-risk applications. Double mechanical seals provide enhanced protection for demanding or critical processes. Selecting the proper seal configuration — and using genuine OEM components — plays a major role in protecting uptime, product quality, and overall operating costs.

For guidance tailored to your process conditions, contact your Fristam application specialist or authorized distributor to determine which seal configuration is the best fit for your operation.
