Throttle vs VFD: The Right Way to Control Pump Flow

Controlling pump flow is a routine part of operating any hygienic process system. Whether adjusting for production rates, accommodating different products, or managing system variability, flow rarely remains constant.

What’s often overlooked is that the method used to control that flow has a direct impact on energy consumption, pump reliability, and even product quality.

Two common approaches – throttling and variable frequency drives (VFDs) – achieve similar outcomes in very different ways. Understanding the physics behind each method is key to selecting the right approach.

The Traditional Approach: Throttling

Throttling controls flow by introducing resistance into the system. A discharge valve is partially closed, increasing system head and forcing the pump to operate at a lower flow rate.

The pump itself, however, continues to run at full speed. It generates the same energy regardless of the required flow, and the excess is absorbed as pressure loss across the valve.

From a system perspective, the pump curve remains unchanged. Instead, the system curve shifts upward as resistance increases, and the operating point moves to a lower flow rate.

While effective, this method inherently trades efficiency for control.

A Different Approach: Variable Frequency Drives (VFDs)

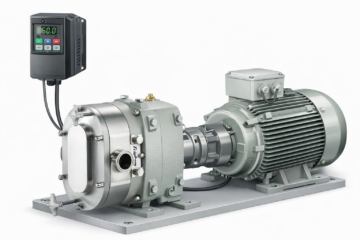

A variable frequency drive takes a fundamentally different approach by adjusting the speed of the pump motor itself.

Instead of producing excess flow and restricting it, the pump generates only what the system requires. This changes not just the operating point—but the pump curve itself.

The relationship between pump speed and performance is defined by the pump affinity laws:

Where:

• Q = Flow rate
• H = Head (pressure)
• P = Power
• N = Pump speed

What the Affinity Laws Really Mean

These relationships are not just theoretical, they explain exactly why VFDs can dramatically improve efficiency.

When pump speed is reduced, flow decreases in direct proportion to speed. For example, reducing speed to 80% results in approximately 80% of the original flow.

Head, however, behaves differently. Because head is proportional to the square of speed, reducing speed to 80% results in only 64% of the original head. This reflects a significant reduction in the energy the pump must impart to the fluid.

The most important relationship is power. Because power is proportional to the cube of speed, reducing speed to 80% lowers power consumption to roughly 51% of its original value.

This cubic relationship is what makes VFDs so impactful. A relatively small reduction in speed leads to a disproportionately large reduction in energy usage.

Throttling vs VFD: A System-Level Perspective

The fundamental difference between throttling and VFD control becomes clear when viewed through this lens.

With throttling, the pump continues to operate at full speed, producing full head and flow potential. The system artificially increases resistance to push the operating point to a lower flow. Energy is still fully consumed – it is simply redirected and dissipated.

With a VFD, the pump itself produces less flow and head because it is running slower. The operating point shifts naturally along a reduced pump curve, aligning more closely with system requirements. Energy is not wasted – it is never generated in excess.

Impact on Efficiency and Operating Cost

In systems with variable flow demand, this distinction has a direct impact on energy consumption.

Throttled systems tend to operate at consistently high power levels, regardless of actual process needs. Over time, this leads to higher operating costs, particularly in facilities with continuous or long-duration pump operation.

VFD-controlled systems, on the other hand, scale energy use with demand. Because of the cubic relationship between speed and power, even moderate reductions in speed can result in significant energy savings.

Mechanical and Process Implications

Operating method also affects how the pump behaves internally.

Throttling often pushes the pump away from its Best Efficiency Point (BEP), introducing hydraulic imbalance. This can increase radial forces on the shaft, leading to vibration, seal wear, and reduced bearing life.

By contrast, VFD control allows the pump to operate along a more stable portion of its performance curve. When properly applied, it can help maintain better alignment with BEP across a range of operating conditions.

From a process standpoint, reduced speed can also lower fluid velocities and shear exposure—an important consideration for shear-sensitive products.

When Throttling Still Has a Role

Despite its limitations, throttling remains useful in certain situations. In systems with fixed operating conditions, it can provide a simple and reliable means of control. It is also commonly used for fine adjustments or as a secondary balancing tool within a system.

However, when throttling becomes the primary method of control – especially in systems with varying demand, it often indicates an opportunity for improvement.

Final Thoughts

Throttling and VFDs both control flow, but they do so in fundamentally different ways.

Throttling controls flow by adding resistance to the system. A VFD controls flow by reducing the energy the pump produces in the first place.

Understanding the physics behind these approaches, particularly the relationship between speed, flow, head, and power makes it clear why VFDs have become an increasingly important tool in modern hygienic processing.
