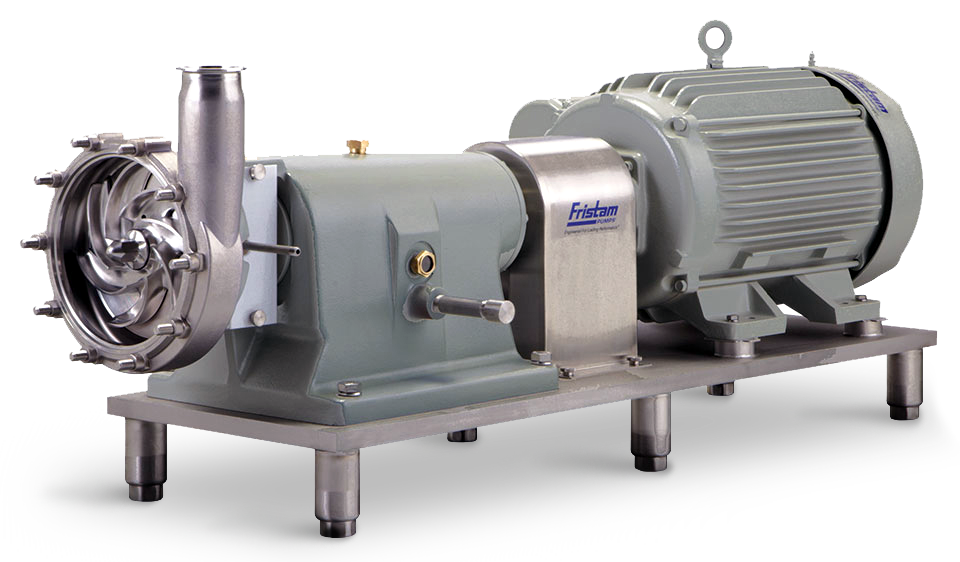

FPH-FPHP-FPHM
Centrifugal Pump

Non-Pulsating Flow.  Long Life. Proven Sanitary Performance.

What are they?

Fristam’s Sanitary High Pressure Centrifugal Pumps (FM / FPH / FPHP / FPHM Series) are designed for demanding processing environments requiring high discharge pressures, smooth, continuous flow, and maximum uptime. Available in single-stage and multi-stage configurations, these pumps are engineered to meet the needs of filtration, reverse osmosis, and high-pressure recirculation systems—while ensuring sanitary operation.

Where are they used?

These pumps are trusted in a wide range of sanitary processing industries, including:

• Reverse Osmosis (RO) Systems
• Filtration / Ultrafiltration (UF)
• Pressure Feed Applications
• Recirculation Systems
• Dairy, Beverage, Food, Pharmaceutical & Biotech

Whether used for membrane feed, CIP return, or product transfer, Fristam’s high-pressure pumps offer unmatched reliability in high-resistance applications.

How do they work?

Fristam high-pressure centrifugal pumps utilize rotating impellers to impart velocity and pressure to the process fluid. In single-stage models (FPH, FPHP, FPHM), one impeller delivers high efficiency for elevated inlet pressures or recirculation. In multi-stage models (FM series), several impellers in series generate significantly higher discharge pressures while maintaining non-pulsating, sanitary flow.

This smooth operation ensures consistent product integrity, less wear on system components, and lower maintenance over time.

Features and Benefits

FM Multi-Stage Pumps

• Up to 4 stages for high pressure and high flow
• Withstands inlet pressures up to 1,000 PSI
• Non-pulsating performance for high product quality
• Ideal for large filtration systems with flows from 300–500 GPM
• Reduces number of feed pumps needed, saving space and maintenance

FPH / FPHP / FPHM Series

• Engineered for RO recirculation and high process line pressures
• FPH handles inlet pressures up to 600 PSI
• FPHP models withstand inlet pressures up to 1,000 PSI
• FPHM is a compact, close-coupled version for elevated inlet pressures (up to 230 PSI) without the size and cost of a bearing block
• Offers system design flexibility for new builds or upgrades

Technical Specifications

FM Series (Multi-Stage)

• Max Discharge Pressure: 340 PSI (1,250 PSI across stages)
• Max Flow Rate: 600 GPM (136 m³/hr)
• Max Viscosity: 600 cps

FHP / FPHP / FPHM Series (Single-Stage)

• Max Discharge Pressure: 180 PSI (12.4 bar)
• Max Flow Rate: 750 GPM (170 m³/hr)
• Max Viscosity: 800 cps

Available Options

• Configurations: Single-stage or multi-stage
• Seal Types: Single mechanical, double mechanical, flushed
• Elastomers: EPDM, Viton®, PTFE, FKM
• Connections: Clamp, flange, DIN, or threaded
• Mounting: Close-coupled or bearing block designs
• Motor Options: Standard or explosion-proof (ATEX-rated available)
